Brand Name : SCX
Model Number : P1.25
Certification : CE,ROHS,FCC,SASO
Place of Origin : China
MOQ : 1 sqm
Price : USD 300-8000
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 3000 sqm per month
Delivery Time : 7 working days
Packaging Details : Flight Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm
Module Size : 320mm x 160mm
Brightness : ≥6500 cd
Led Lamp : NationStar
IC : MBI 5153
Pixel Pitch : 10mm
P1.25 Outdoor arc LED display Outdoor/ Indoor Arc Video Wall Curved LED Display Screen for Advertising
Product Description
| Item | Specification | ||||||||
| LED Parameters | Luminous Intensity | R:620-630, G:520-535, B:465-475 | |||||||
| Wavelength | R:400-500mcd, G:1800-2200mcd, B:350-450mcd | ||||||||
| Test Condition | R:25℃,20mA, G:25℃,20mA, B:25℃,20mA | ||||||||
| LED Module | Led Type | SMD 3 IN 1 | |||||||
| Pixel Pitch | 10 mm | ||||||||
| LED Shape & Size | 3mm SMD 3535 | ||||||||
| Encapsulation Type | 1R1G1B | ||||||||
| Module Dimension | 320mmx160mm | ||||||||
| Module Resolution | 32 ×16 | ||||||||
| Module Weight | 0.20 KG | ||||||||
| Pixel Density | 10000 | ||||||||
| Driving Mode | 1/4 | ||||||||
| Module Power Consumption | 20 W | ||||||||
| LED Cabinet | Cabinet Size | 960mm(W)x 960mm(H) | |||||||
| Cabinet Thickness | 140 mm | ||||||||
| Cabinet Resolution | 96x96 | ||||||||
| Cabinet Material | Die Casting Aluminum Cabinet | ||||||||
| Screen | Use | Fixed | |||||||
| Cabinet Weight | 30 KG | ||||||||
| Optical parameters | Brightness | ≥6500 cd | |||||||
| Contrast Ratio | ≥3000:1 | ||||||||
| Single-point Brightness Correction | Available | ||||||||
| Single-point Color Correction | Available | ||||||||
| Surface Evenness | GAP< 1mm | ||||||||
| Color Temperature Condition | 3500K~9500K,(can be adjustable) | ||||||||
| Viewing angle | 140°(Horizontal),140°(Vertical) | ||||||||
| Gray Scale | 16 bit | ||||||||
| Minimum Viewing Distance | 10 m | ||||||||
| Brightness Adjustment | 0-100% 8 levels | ||||||||
| Power Supply | Operation Power | AC90-260V 50-60HZ | |||||||
| Max Power Consumption | 800 W /m² | ||||||||
| Average Power Consumption | 350 W /m² | ||||||||
| Control System | Control Mode | Synchronous Control by Linsn system | |||||||
| Frame Update Frequency | ≥600Hz | ||||||||
| Screen Refresh Frequency | ≥38400Hz | ||||||||
| Gamma Correction | (-0.5—5.0) | ||||||||
| Input Signal Support | Composite,S-Video,Component, VGA,DVI,HDMI,SDI,HD_SDI | ||||||||
| Control Distance | UTP CAT5E:100m;Multi-mode Fiber:500m; Single-mode Fiber:10km | ||||||||
| Video Signal | MPG /MPEG/MPV/MPA/ AVI/SWF/RM/RA/RMJ/ASF | ||||||||
| Support VGA Mode | 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, | ||||||||
| Brightness Correction | Dot by Dot,module by module, cabinet by cabinet | ||||||||
| Operating Temp. | - 10° —+55° Celcius degree | ||||||||
| Operating Humidity | 10 - 90 % RH | ||||||||
| Operating Life | 100,000 Hours | ||||||||
| Protection Level | IP65 | ||||||||
| MTBF | 5000 Hours | ||||||||
| Out of Control Pixel Rate | 0.01% | ||||||||

| Training | Free of charges;In our workshop, we provide all the training including process of operation, installation, maintenance, system set up, etc. |
| Warranty | 1, 3 years, .From beginning of installation finished the led display, During it , we will be responsible for all the quality problem. |
| Guarantee | 1, All the life time for Technology support , system update ,maintenance . |
| Remark
| 1. We are manufacturer of LED display. We only provide the Screen, Cabinet and module, |

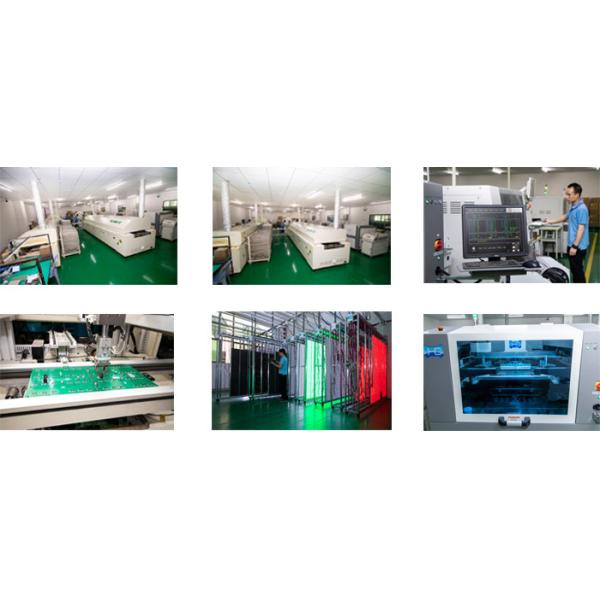

Workshop Machine

|
|
